Description

Furuno and other radomes

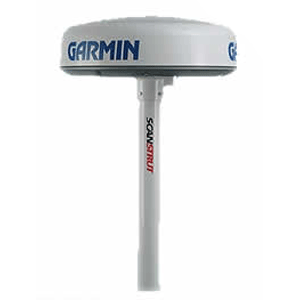

Scanstrut’s SC103 Pole Mount allows installation of your radar or 30cm or 40cm satcom antenna onto the deck or transom of your boat.
Features:

• Adjustable base, able to rotate through 360x and angle from horizontal all the way to vertical
• Unique pole extrusion accommodates two cable channels with a cover strip to hold cables in place
• Supplied with two support modules providing maximum fore / aft and sideways bracing
• Easily removed for racing or winter storage, leaving just low profile base on deck

Dimensions:

• 1.9m / 6.4′ recommended for deck mounting
• 3″ diameter pole
• Base diameter of just 80mm / 3.1″

Materials:

• Marine grade 6082 aluminium pole
• Polyester powder coated for a durable and gloss white finish

Kit includes:

• 1 x Pole (complete with 2 x cable cover strips)
• 1 x Adjustable base
• 1 x Top for radar / satcom antenna
• 1 x 1200mm / 3.9′ deck strut
• 1 x Rail stand off for 25mm / 1″ rail
  Scanstrut’s SC103 pole mount can mount radar or 30cm or 40cm satellite communication antennas on the deck or stern of a ship. Features: Adjustable base, can rotate through…
  SKU: NVN-36177
  MPN: SC103
  UPC: 5060114790605
