Description

Schaefer Marine Schaefer Series 5 Flat Base Cheek Block – Stainless Steel Cheeks is organized for deck hardware & rigging shoppers who need a clear, professional marine parts buying experience.

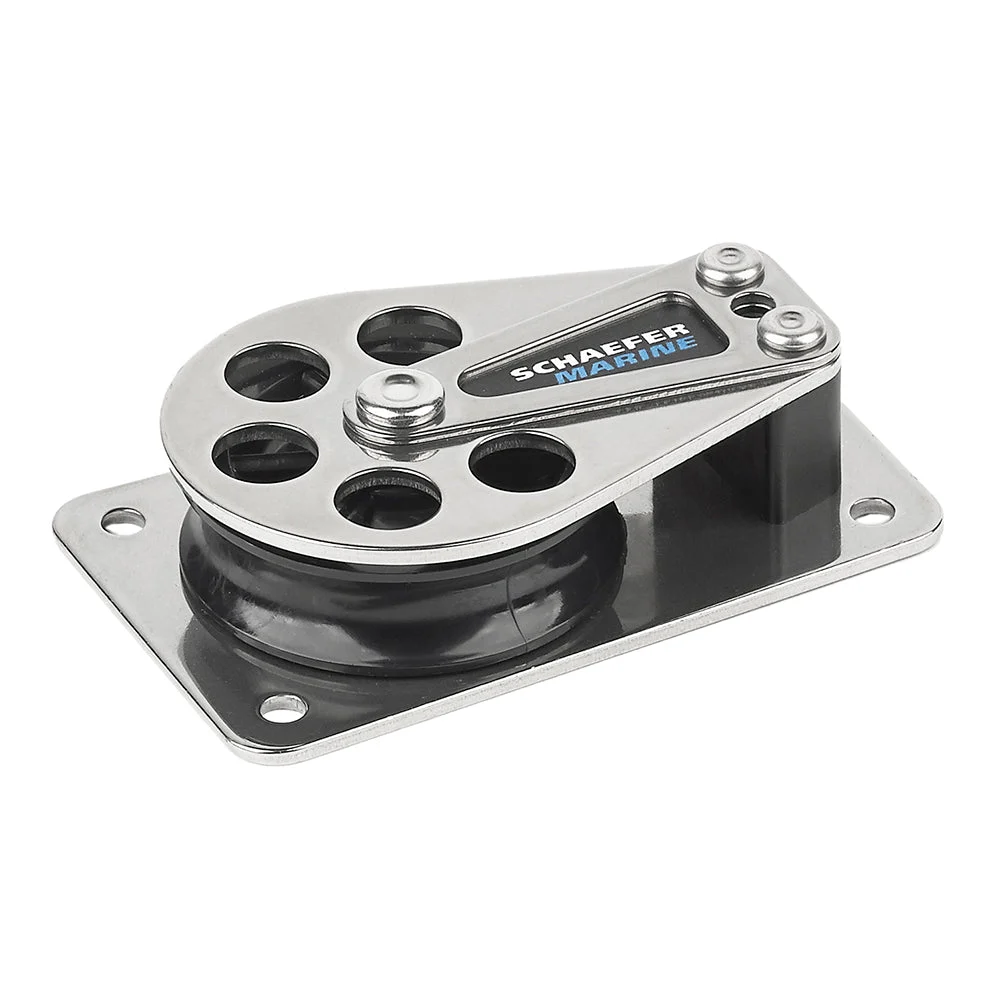

Series 5 Flat Base Cheek Block – Stainless Steel Cheeks Series 5 Cheek Block with Stainless Steel cheek. Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area. Specifications: Sheave Diameter 2″ (51 mm) Max. Line 7/16″ (11 mm) Length 3-5/8″ (92 mm) Width 2-7/32″ (57 mm) Height 7/8″ (22 mm) Fasteners (4) #10 – RH (5 mm) C/C 3″ (76 mm) SWL 1750 lbs. (795 kg) Weight 6.9 oz. (196 g) Max Line 7/16″ (11mm)

Fitment & Product Details

• Brand / Manufacturer: Schaefer Marine
• Material: stainless steel

• Search-optimized by brand, system, part type, and fitment cues.
• Verify compatibility with your original part number, engine model, and application before ordering.
• Built for boat owners, e-commerce shoppers, and professional marine service teams.
