Description

Transom drain plug reimagined and engineered it to be easy to use and impossible to lose. If the plug is left open the inteliPlug ProXT will sound an alarm until the plug is closed. inteliPlug ProXT captive drain plug and garboard assembly. ProXT features a hermetically sealed aeronautical grade sensor with Deutsch plug pigtail, plug and play wire harness (25 Feet) and alarm panel sensor.

Seaview SVIPPROXT Attributes

• Type: Triangular Ergonomic Plug
• Diameter: 2 Inch
• Material: Glass Fiber Reinforced ABS

Seaview SVIPPROXT Features & Benefits

• Manufactured From Glass Fiber Reinforced ABS To Increase Strength And Flexibility
• Increases Fatigue Endurance, Resistance To High And Low Temperatures And Resistance To Abrasion
• Large Opening In Garboard Assembly For Easy Flow/Drain
• Direct Replacement For The Bronze And Stainless Traditional Style Garboards
• Approved For All Marine Environments Including Salt Water
• Engineered Transom Gasket, No Messy Silicone Needed
• Modified NPT Threads Form A Primary Seal Combined With The Tension Of The Integrated O-Ring For A Secondary Seal
• Spring- Loaded Cap Is Captive
• Features A Triangular Ergonomic Cap So There Are No Tools Required To Tighten Or Loosen The Plug
• Limited 3 Year Warranty

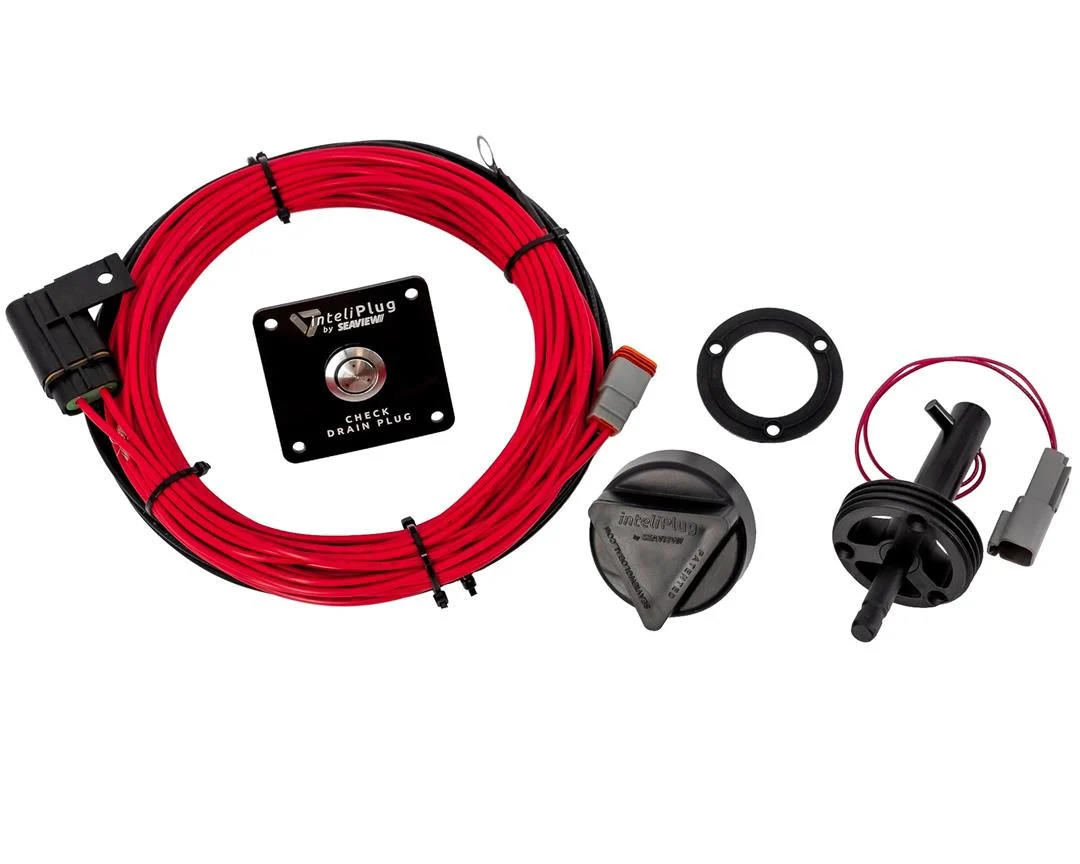

Inteliplug ProXT Captive Drain Plug, Garboard Assembly, Sensor & Deutsch Plug Pigtail with Plug-and-Play Harness

The Seaview Inteliplug ProXT is a transom drain plug reimagined and engineered to be easy to use and impossible to lose.

Features:

• ProXT comes with a hermetically sealed aeronautical grade sensor with a Deutsch plug pigtail
• Ergonomic design so you don’t need tools
• Spring-loaded captive cap (stays attached)
• A direct replacement for the bronze and stainless traditional style garboards (520040, 520042, 520060)
• Approved for all marine environments including saltwater.
• Manufactured from durable marine-grade ABS + 15% fiber
• NPT thread and a backup O-ring – watertight fit
• 2″ outer diameter – fits in the same spot as your current garboard drain plug
• Engineered transom gasket – no messy silicone needed
• 3 large individual drain cavities – plenty of flow area
• Sensor with Deutsch DT04-2P plug pigtail including plug-and-play wire harness and alarm panel

SKU: NVN-93843
MPN: SVIPPROXT
UPC: 727908835977
