Description

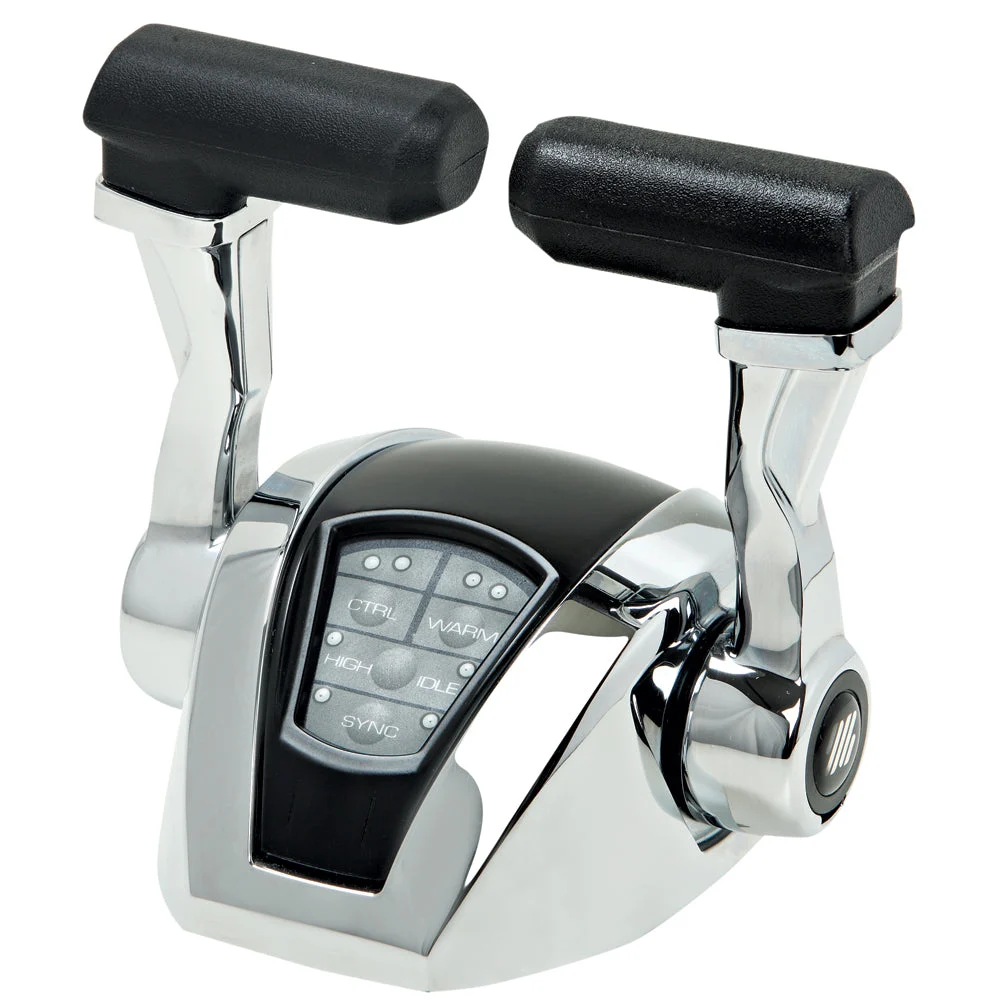

Power A EE21 – Electronic Control Package

Power A Mark II™ Electronics Control Systems

• Private Protocol can bus for data transmission
• Connection of multiple stations up to 4 controls
• Modular System
• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
• Plug’N Play connectivity
• Automatic engines synchronization
• Dock Assist
• Fully programmable shift delays

EE21 Package Includes:

• 42011T – (1) PA2-B2 – Dual Lever Control w/o Trim
• 42017F – (1) PA2-CU – Control Unit w/LED Diagnostc & Programming Screen
• 42018H – (1) PA2-VT – V-Throttle f/0-5V Interface
• 42028L – (1) PA2-NT – Network Terminator
• 42029N – (2) T-VT2 – Universal V-Throttle Cable 6.5′
• 42060G – (1) M-S1 – Solenoid Shift Cable, 3′
• 71021K – (2) CAN-10 – Network Connection Cable 33′
• 73639T – (2) CAN-1 – Network Connection Cable 3′
• 42023A – (1) PA2-SU – Electronic Shift Unit
• 42052H – (2) M-P1 – Power Supply Cable 6.5′

“Wide selection of marine products to help fulfil your boating needs. Safety and maintenance products boat accessories and water sports accessories. Our products are renowned today for their ease-of-use rugged design and reliability. FeaturesPrivate Protocol can bus for data transmission- SKU: CW58657”
SKU: NVN-46018
MPN: EE21
UPC:
