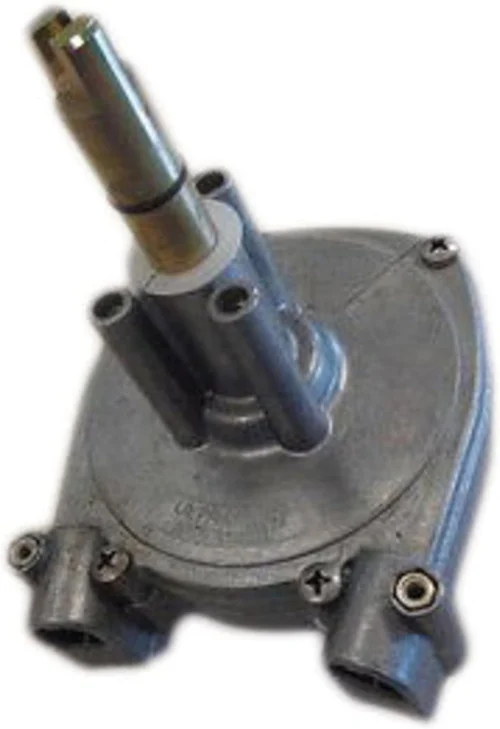

Uflex Standard Rotary Tilt Helm T81Fc

For the ultimate in driving comfort the tilt helm features a 5 position tilt range, and the Planetary Gear design delivers responsive steering with reduced rudder torque. For use with the Uflex M66 steering cable and X52 tilt assembly. Not intended for use on applications where the horsepower exceeds the rating of the boat. X52 Tilt mechanism must be ordered separately.
T83FC Zerotorque Helm patented clutch makes it ideal for outboards and other applications with moderate torque.

Features:

• 48&deg, Tilt range & 5 locking positions
• Eliminates underdash movement
• Standard SS 3/4″ tapered shaft
• Corrosion resistant materials
• Approx. 3.8 turns lock-to-lock
• Stroke: 9″
• Max. 16″ dia. steering wheel
• Min. 7.9″ radius steering cable bend
