Description

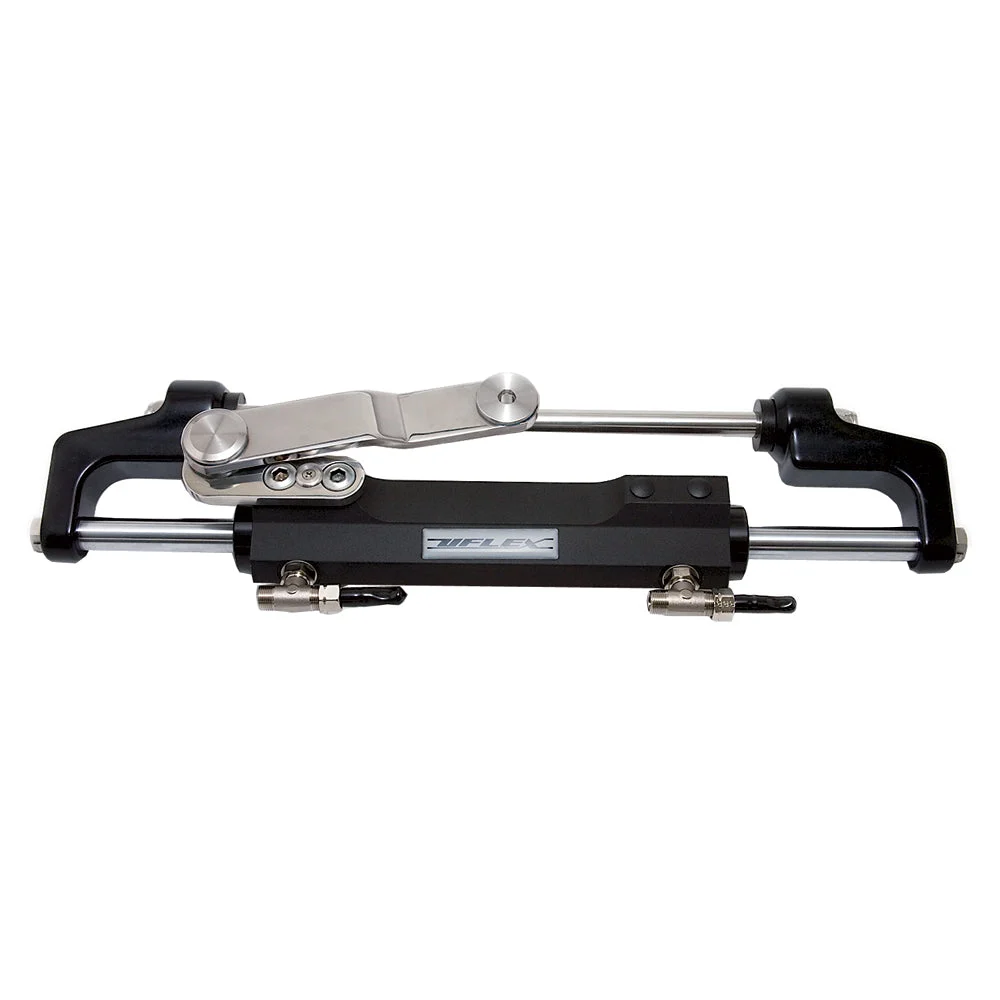

UC128-OBF-2 – Front Mount Cylinder
w/offset LinkArm
Balanced: The number of turns lock-to-lock is equal port to starboard or vice-versa. High resistance stainless steel connection bolt.

• Volume: 120cc: 7.3 cu. in
• Output Force: 450 kg – 992 lbs
• Inside Diameter: 35mm – 1.37″
• Stroke: 185mm – 7.28″
• 3/8″ (9,5 mm fittings) – For high pressure flex hose
• Bleed Fittings: DN5 Quick connect

UC128-OBF-2-Front-mounted cylinder balance with offset LinkArm: The number of turns locked to the lock is equal to the port on the starboard side, and vice versa. High resistance stainless steel pipe
SKU: NVN-46657
MPN: UC128OBF 2
UPC: 702755051190
