Description

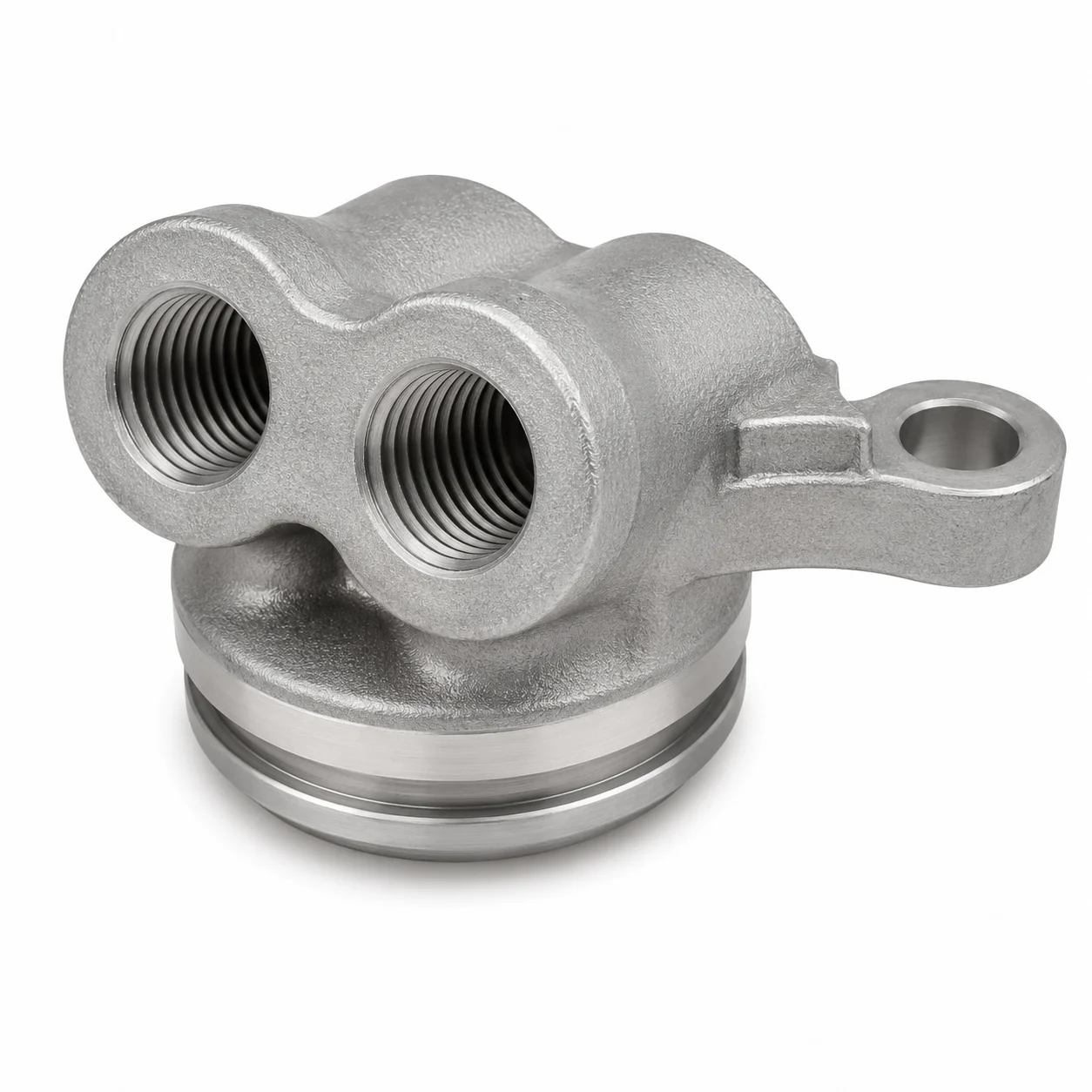

The Volvo Penta 3852559 is an OEM hydraulic manifold block used in SX-style sterndrive power trim systems. It distributes trim oil from the trim pump through the hydraulic hoses to the trim cylinders on compatible Volvo Penta SX transom assemblies.

Key Features

• Genuine Volvo Penta manifold/block reference
• Part number: 3852559
• Product type: hydraulic trim manifold block
• Used in SX transom / trim system applications
• Distributes trim oil from the pump to the trim cylinders
• Commonly associated with Volvo Penta SX-C, SX-M, SX-R, and SX-S transom assemblies
• Related trim oil line references include 3853854, 3853855, 3853856, 3853857, 3857523, and 3857524
• Related O-ring references: 3852165 and 3852169
• Cross-reference: OMC/BRP 3852559

Application Compatibility

Commonly associated with Volvo Penta SX transom assemblies including TSK SX-C, SX-C1, SX-C2AC, SX-CLT, SX-M, SX-MDA, SX-MDB, SX-MDC, SX-MHP, SX-MLT, SX-R, SX-R1, SX-R2, SX-S, and SX-SLT.

Fitment Notice

Confirm fitment by transom assembly model, drive serial number, trim-cylinder style, and hose layout before ordering. Earlier aft-connection trim cylinders and later fore-connection trim cylinders can use different hose sets, even when the manifold block is the same.

When This Part Needs Replacement

Replace the manifold block if it is cracked, corroded, leaking at the hose ports, damaged during hose removal, stripped at the fittings, or causing trim hydraulic fluid loss.

Installation Notes

Relieve trim-system pressure before service and keep the hydraulic system clean. Replace related O-rings during installation, route hoses exactly as shown in the trim-system diagram, and test the drive through the full trim range while checking for leaks.

Alternate/Superseded Part Numbers

• 3852559
• OMC/BRP 3852559
• PM3852559 — aftermarket replacement reference

Parts Desk Insight

This block sits at the centre of the SX trim hydraulic hose layout. The part number matters, but the bigger installation check is hose routing—especially port/starboard and up/down trim lines—because crossed or leaking trim hoses can create hard-to-diagnose trim problems.
