Description

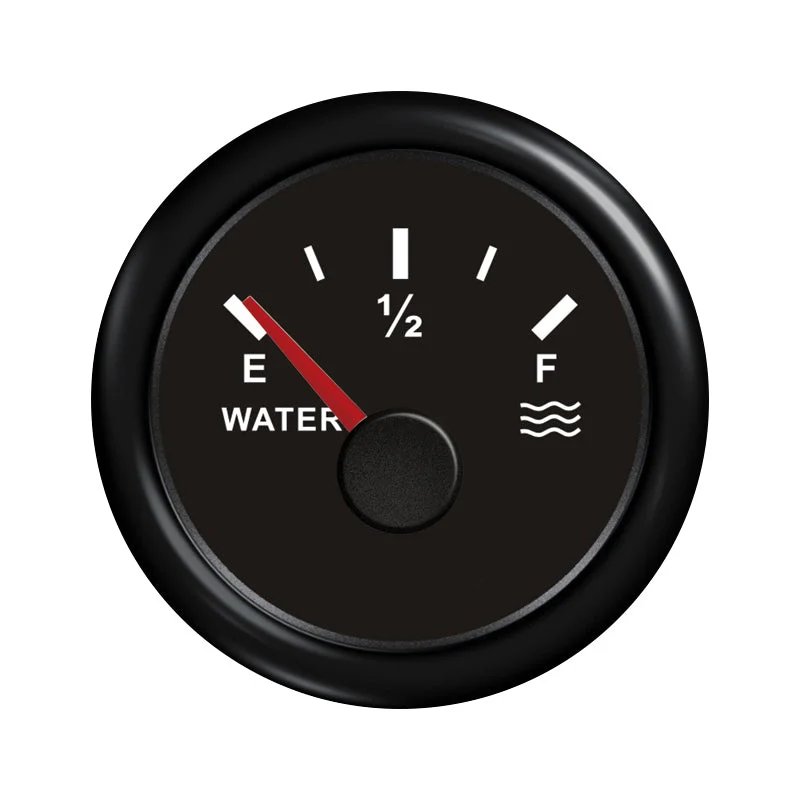

Water Tank Level Gauge – 240-33 Ohm – Marine Fresh Water Tank Meter

Analog water tank level gauge designed for marine fresh water tank monitoring. This 240-33 ohm gauge provides accurate level indication when paired with a compatible tank sender, helping manage water consumption and plan refills.

• 240-33 Ohm Compatibility – Standard marine tank sender specification
• Fresh Water Application – Designed for potable water tank monitoring
• Analog Display – Easy-to-read gauge face
• Marine-Grade Construction – Built for harsh marine environments
• Universal Compatibility – Works with standard 240-33 ohm senders
• Panel Mount Design – Professional instrument installation

Specifications:

• Resistance Range: 240-33 ohms
• Type: Analog tank level gauge/meter
• Application: Fresh water tank monitoring
• Compatibility: 240-33 ohm tank senders
• Display: Analog gauge face
• Weight: 0.18 kg (0.40 lbs)
• SKU: 197344 | Barcode: 5204981973444

How Tank Gauges Work:

• Gauge reads resistance from tank sender
• 240 ohms = Empty tank
• 33 ohms = Full tank
• Needle position indicates tank level
• Requires compatible 240-33 ohm sender

Applications:

• Fresh water tank level display
• Helm instrument panel installation
• Water capacity monitoring
• Consumption tracking
• Refill planning

Essential instrument for marine fresh water tank monitoring. The 240-33 ohm specification is the standard for marine tank gauges, ensuring compatibility with most marine water tank senders. Provides at-a-glance water level indication from the helm or galley.

Requires compatible 240-33 ohm tank sender (sold separately). Ensure proper grounding for accurate readings. Calibrate after installation.
