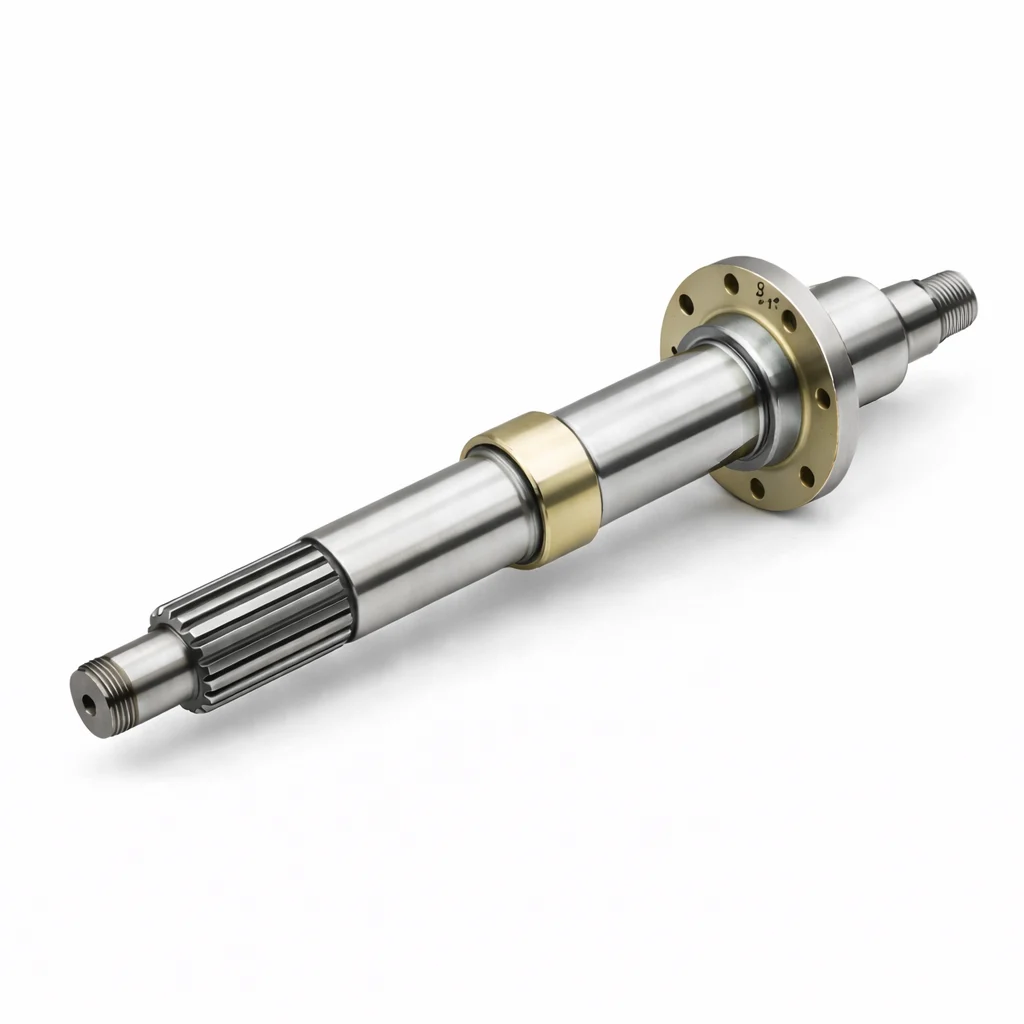

Output Shaft for ZF Hurth 30/50 HBW-USD Marine Transmissions

This precision-machined output shaft is engineered for ZF Hurth 30, 50, HBW, and USD series marine transmissions, providing the critical connection between the transmission internal components and the propeller shaft. Essential for transmission rebuilds and output shaft replacement.

Key Features:

• Precision-machined output shaft for ZF Hurth 30/50/HBW/USD transmissions
• OEM-quality construction ensures proper fit and durability
• Hardened steel construction for strength and wear resistance
• Precision-ground splines and bearing surfaces
• Critical component for power transfer to propeller shaft
• Manufactured to exact ZF specifications and tolerances
• Essential for transmission rebuilds and output shaft service

Function & Importance:

The output shaft is a critical transmission component that transfers power from the transmission internal gears to the propeller shaft coupling or flange. It must be precisely machined to ensure proper bearing fit, spline engagement, seal surface finish, and alignment. A worn or damaged output shaft can cause noise, vibration, seal leaks, bearing failure, and transmission damage.

Compatible Models:

• ZF Hurth 30 Marine Transmission
• ZF Hurth 50 Marine Transmission
• ZF Hurth HBW Series Marine Transmissions
• ZF Hurth USD Series Marine Transmissions

When to Replace:

Output shaft replacement is necessary when experiencing worn splines, damaged bearing surfaces, scored seal surfaces, bent shaft, or during complete transmission rebuilds. Inspect output shaft carefully during any transmission service for wear, scoring, pitting, or damage. Always replace if any defects are found to prevent future transmission failure and seal leaks.

Critical Surfaces:

The output shaft has several critical surfaces including bearing journals that must be smooth and within tolerance, splines that must be unworn and properly sized, seal surfaces that must be polished and free of grooves or scoring, and flange mounting surfaces that must be flat and true. Any damage to these surfaces requires shaft replacement.

Installation:

Professional installation required. Output shaft replacement requires complete transmission disassembly and rebuild. Follow ZF rebuild procedures for proper bearing installation, seal installation, clearance checks, and torque specifications. Ensure all mating components are inspected and replaced as needed. Verify proper alignment and end play before final assembly.

Technical Specifications:

• Type: Output shaft
• Compatible Models: ZF Hurth 30, 50, HBW, USD series
• Part Number: 3014872119
