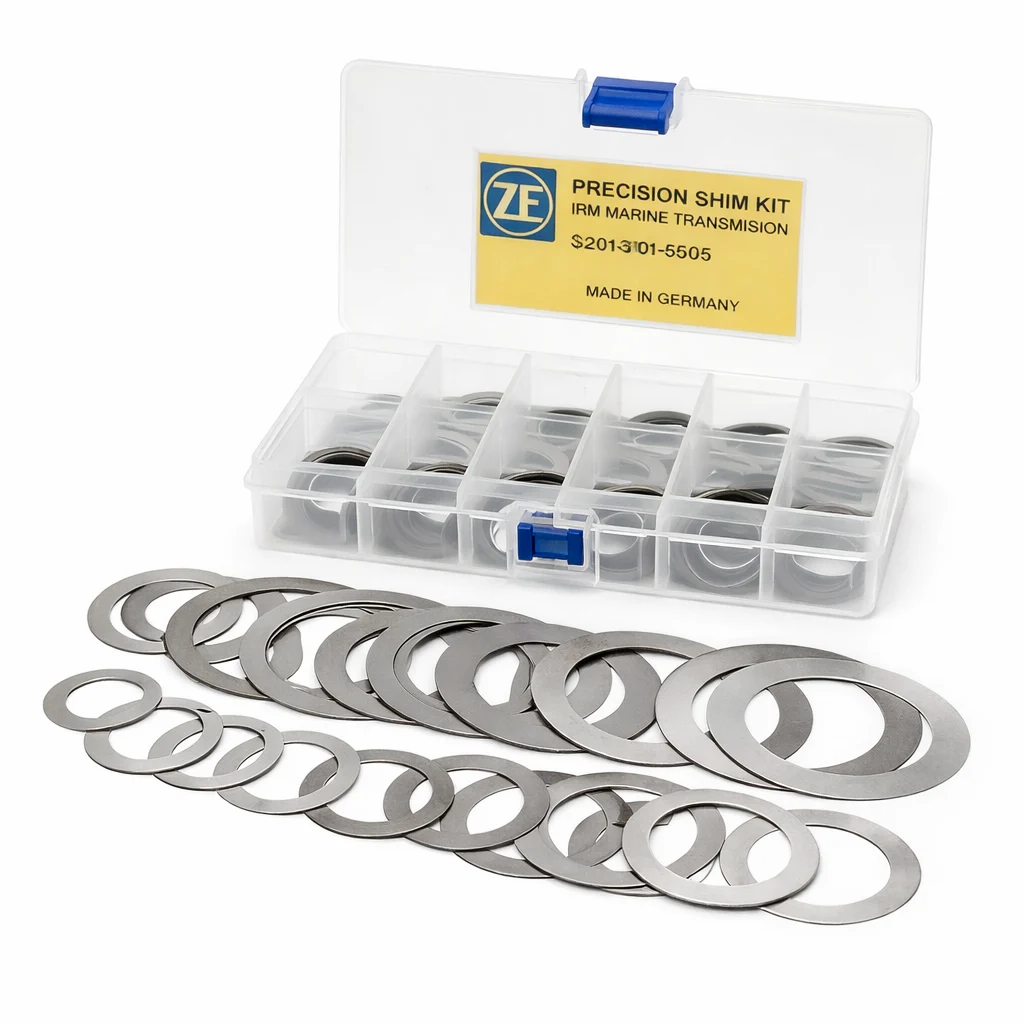

Precision Shim Kit for ZF IRM Marine Transmissions

This comprehensive shim kit is engineered for ZF IRM marine transmissions, providing the precise shims needed for proper bearing preload adjustment, gear mesh alignment, and clearance settings during transmission assembly and rebuilds. Essential for professional transmission service and rebuilds.

Key Features:

• Complete shim kit for ZF IRM transmission series
• Precision-manufactured shims in various thicknesses
• Essential for proper bearing preload and gear alignment
• OEM-quality materials ensure accurate, reliable adjustments
• Includes all shim sizes needed for complete transmission rebuild
• Critical for achieving proper clearances and preload specifications
• Ensures quiet operation and maximum transmission life

Purpose & Importance:

Shims are critical precision components used during transmission assembly to achieve exact bearing preload, gear mesh clearances, and component positioning. Proper shimming ensures bearings operate within specification, gears mesh correctly without excessive backlash or binding, and all rotating components have appropriate clearances. Incorrect shimming can lead to premature bearing failure, gear noise, overheating, and transmission damage.

Compatible Models:

Designed for ZF IRM series marine transmissions. This comprehensive kit includes the range of shim thicknesses required for proper transmission assembly according to ZF specifications.

Professional Use:

Shim selection and installation requires specialized knowledge, precision measuring tools (micrometers, dial indicators), and adherence to ZF assembly specifications. Proper shimming is critical during transmission rebuilds to ensure correct bearing preload, gear alignment, and component clearances. Incorrect shim selection can result in transmission failure.

When Required:

Shim kits are essential during complete transmission rebuilds, bearing replacements, gear replacements, or any service requiring transmission disassembly. New shims should be used during reassembly – do not reuse old shims as they may be compressed or damaged.

Installation:

Professional installation required. Shim selection requires precise measurement of component clearances and bearing preload according to ZF specifications. Use appropriate measuring tools and follow ZF rebuild procedures exactly. Verify all clearances and preload settings before final assembly.

Technical Specifications:

• Type: Precision shim kit
• Compatible with: ZF IRM series marine transmissions
• Part Number: 3205199503
