Description

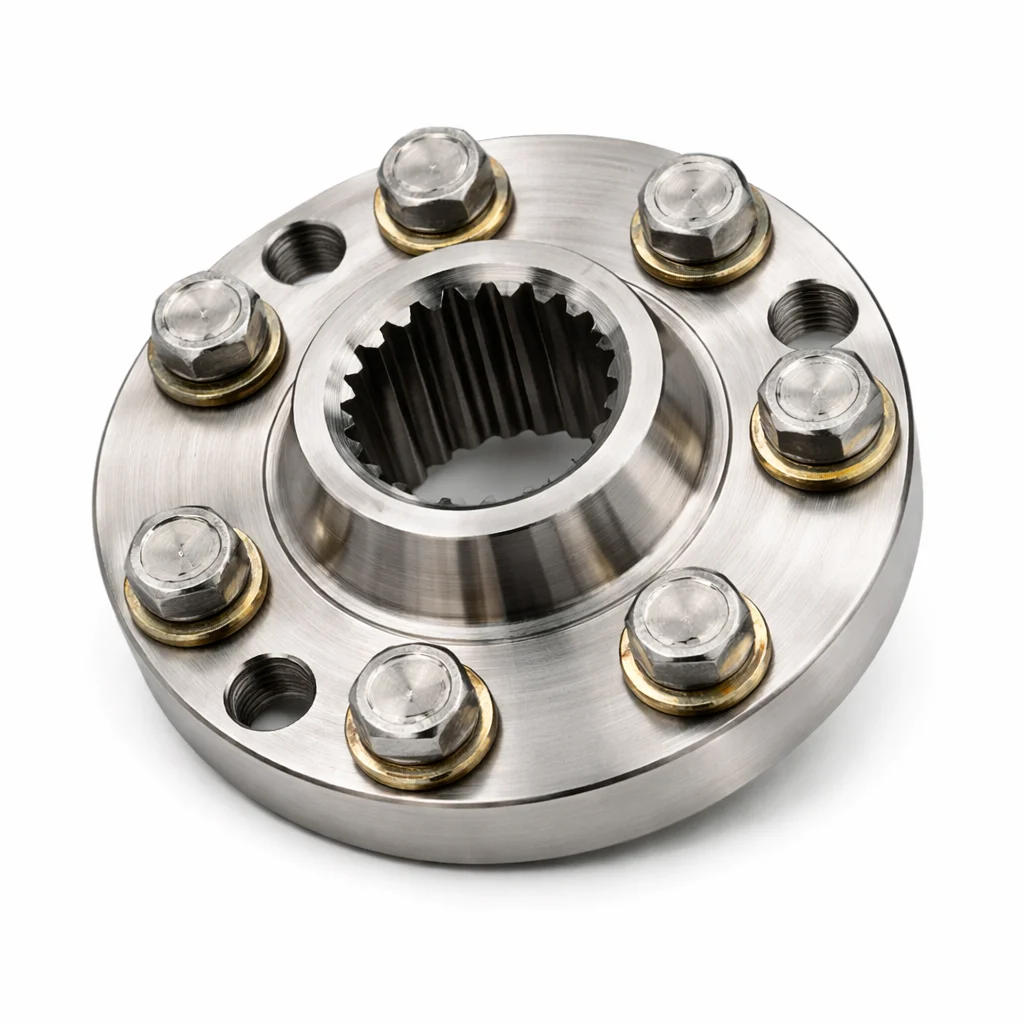

4-Inch Output Flange for ZF Marine Transmissions

This precision-machined 4-inch output flange is engineered for ZF marine transmissions, providing a robust connection point between the transmission output shaft and the propeller shaft coupling. Essential for drivetrain assembly and transmission installations.

Key Features:

• Precision-machined 4-inch output flange for ZF transmissions
• OEM-quality construction ensures proper fit and alignment
• Robust design handles high torque loads and vibration
• Corrosion-resistant materials suitable for marine environments
• Critical component for connecting transmission to propeller shaft
• Ensures proper alignment and smooth power transfer
• Manufactured to exact ZF specifications

Function & Importance:

The output flange is a critical drivetrain component that bolts to the transmission output shaft and mates with the propeller shaft coupling. It must be precisely machined to ensure proper alignment, minimize vibration, and handle the torque loads transmitted from the engine to the propeller. A worn or damaged output flange can cause vibration, misalignment, and premature wear on transmission seals and bearings.

Applications:

Compatible with ZF marine transmissions requiring a 4-inch output flange. Essential component for new transmission installations, drivetrain rebuilds, or replacement of worn or damaged flanges.

Installation Notes:

Professional installation recommended. Proper alignment between transmission output flange and propeller shaft coupling is critical for vibration-free operation. Follow ZF installation procedures for torque specifications and alignment tolerances. Ensure all fasteners are properly torqued and secured with appropriate locking methods.

Technical Specifications:

• Type: Output flange
• Size: 4 inches
• Compatible with: ZF marine transmissions
• Part Number: 3311304003
