Description

Product Specification

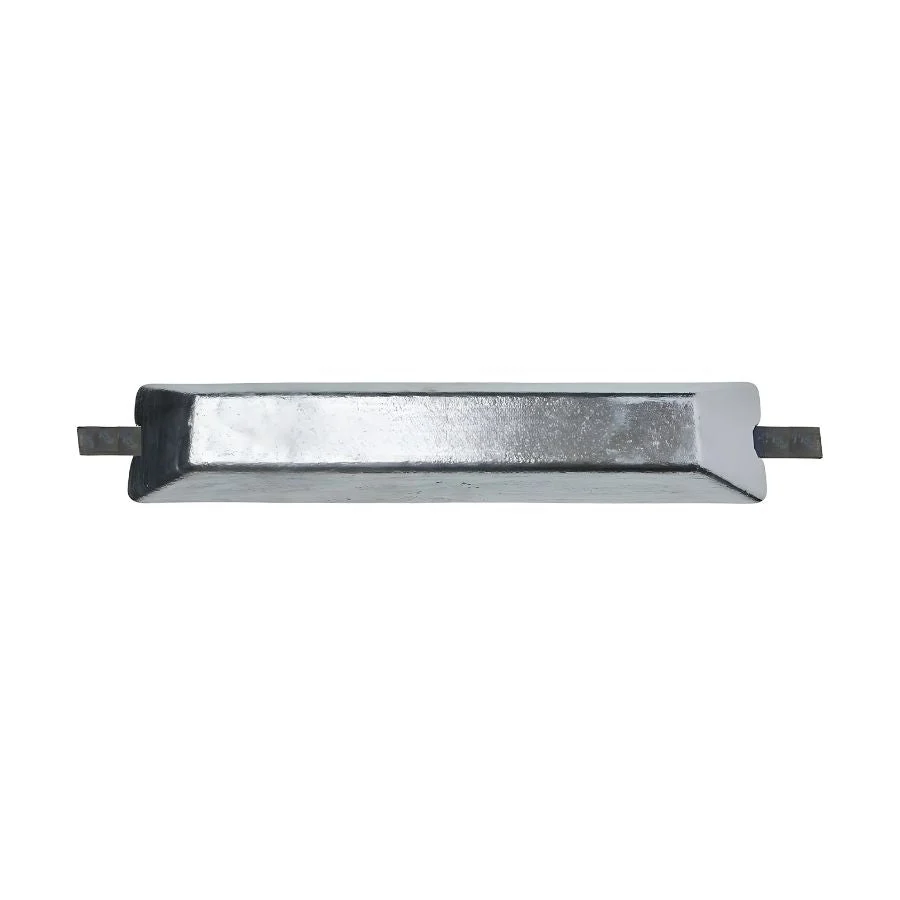

Type 155 Zinc

Material: Zinc

Alloy: MIL-DTL-18001L – Zn

Item: B111550

• Weight: 15.5 KG

• Reinforcement: Steel

• Total length: 700mm
• Length: 590mm
• Width: 116mm
• Height: 45mm

Application areas:

• Ship hull
• Port
• Slip
• Cable
• Pipeline
• Dykdalb
• Pump
• Pontoons
• Bridges

Pillars

Zinc anodes are mainly used in seawater and brackish water. Zinc anodes can be used in brackish water if the resistivity is not too high (approx. 1.5 Ωm). Zinc is more chemically stable than Aluminum and is therefore preferred by many in slightly brackish water environments.

The term “zinc” has become synonymous with sacrificial anodes, since zinc was the original material used for this purpose. But other metals, such as aluminum and magnesium, also act as sacrificial anodes.

With over 30 years of experience, you as a customer can always feel safe with our products. We manufacture everything according to international standards and industry guidelines. Each batch of anodes undergoes rigorous testing and quality assurance, and has been for over 30 years…

Are you unsure about what type of material to use? Ask us, we can!

Technical data

• Capacity: 780 Ah/kg
• Consumption: 11.2 kg/A year
• Specific weight: 7.13 kg/dm³
• Potential: -1,030 mV rel Ag/AgCl in seawater

Typical Chemical Composition,MIL-DTL-18001L – Zn

Materials	% by weight
Aluminum (Al)	min 0.10, max 0.5
Cadmium (Cd)	min 0.025, max 0.07
Steel (Fe)	max 0.005
Copper (Cu)	max 0.005
Lead (Pb)	max 0.006
Other (each)	max 0.10
Zinc (Zn)	Remaining
