Description

Product specification

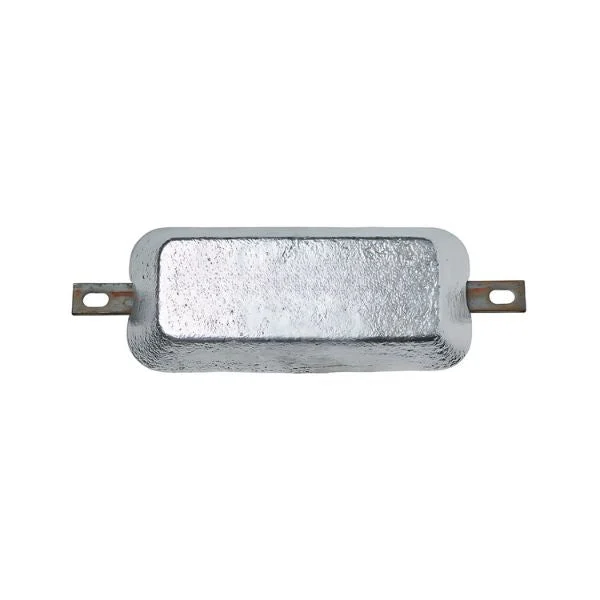

Type 55 zinc anode

Material: Zinc

Alloy: MIL-DTL-18001L-ZN

Article: B110550

• Net weight: 5.1KG/11lb
• Gross weight: 5,5KG/12lb

• Reinforcement: Steel
• Hole distance: 310mm/12.2inches
• Bolt holes: 12x20mm/0.47×0.78inches

• Total length:350mm/13.8inches
• Length:260mm/10.2inches
• Width:113mm/4.45inches
• Height:33mm/1.33inches

Application areas:

• Ship hull
• Port
• Slip
• Cable
• Pipeline
• Dykdalb
• Pump
• Pontoons
• Bridges
• Pillar

With over 30 years of experience, you as a customer can always feel safe with our products. We manufacture everything according to the highest international standards and industry guidelines. Each batch with anodes undergoes rigorous testing and quality assurance, as it has been for over 30 years …

Not sure what type of material to use?Ask us, we can!

Technical data

• Capacity: 780 AH/kg
• Consumption: 11.2 kg/A year
• Specific weight: 7.13 kg/dm³
• Potential: -1 030 mv Rel AG/AGCL in seawater

Typical chemical composition,MIL-DTL-18001L-ZN

Material	% of weight
Aluminum (al)	min 0.10, max 0.5
Cadmium (CD)	min 0.025, max 0.07
Steel (FE)	Maximum 0.005
Copper (CU)	Maximum 0.005
Lead (pb)	Maximum 0.006
Other (each)	Maximum 0.10
Zinc (zn)	Remaining
