This NMEA 2000 Magnetic Switch Cylinder (Indoor/Outdoor) is an available SIM100 Accessory.

Maretron MS1055N Attributes

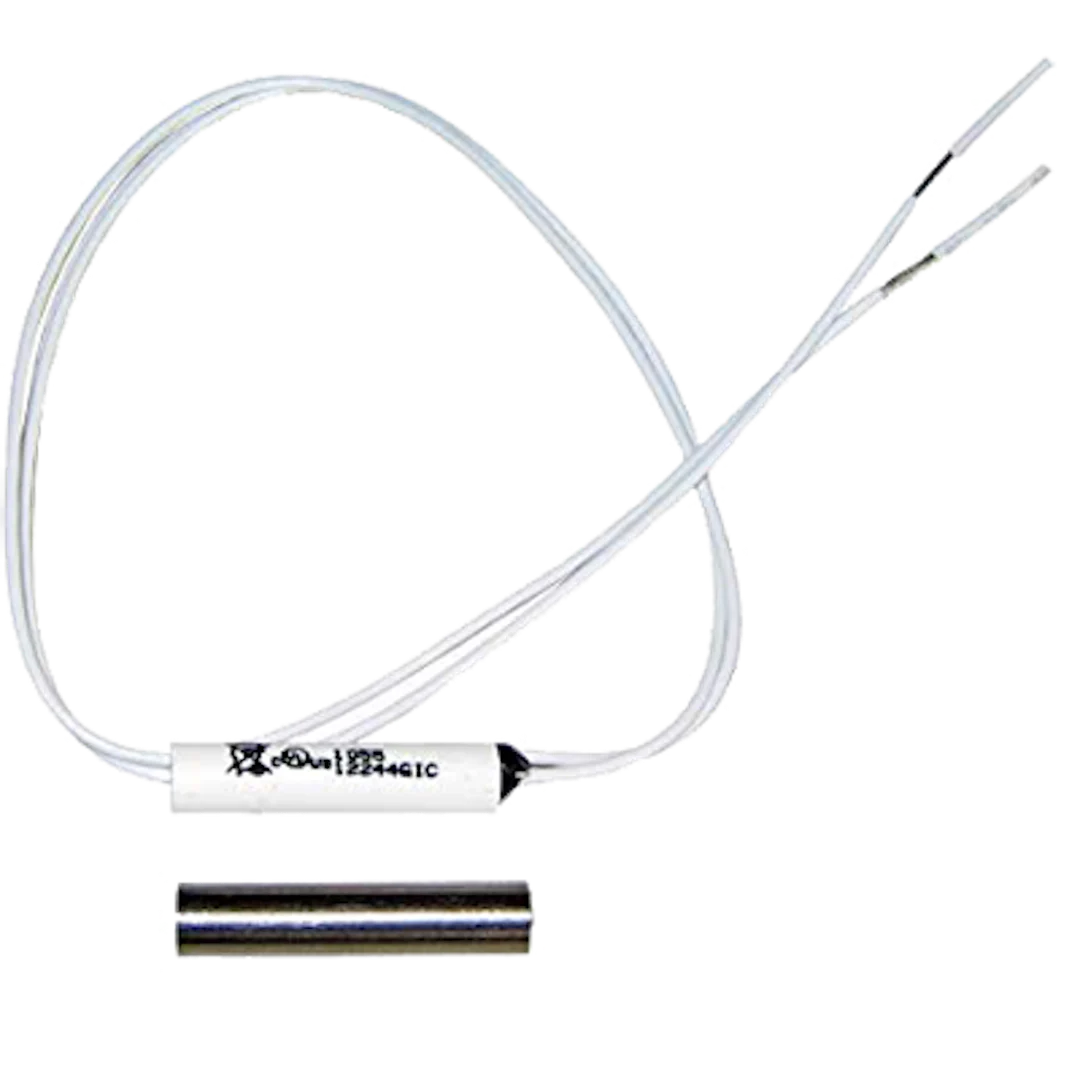

Magnetic Switch, MFG# MS-1055-N, Cylinder type for Indoor/Outdoor use. Includes magnet. For use with SIM100 Switch Indicator Module.
MS-1055-N Magnetic switch cylinder for indoor/outdoor applications: economical and multifunctional, suitable for use in limited spaces. Specifications: ABS plastic shell IP67 natural color…

• Enclosure: ABS Plastic
• Temperature Range: -40°F to 150°F (-40°C to 65°C)
• Environmental: Hermetically Sealed Reed Switch (Encapsulated in Polyurethane)
• NEMA Rating: 1, 2, 3, 4, 4x, 5, 6, 12
• Protection Class: IP 67
• Response Time: 1 msec max.
• Life Cycles: 100,000 Under Full Load, 10,000,000 Under Dry Circuit
• Lead Types/O.D: #22 wire / 0.05″ (0.15cm)
• Color: Natural
• UL/ULC Listed: All Models

Warning— Each electrical rating is an individual maximum and cannot be exceeded!

Electrical:

• Part Number: 1055-N
• Contact Configuration: N.O. (Configuration with actuator away from the switch)
• Load Rating (AC/DC): 7.5W/VA
• Switching Voltage (AC/DC): 100V
• Switching Current (AC/DC): 0.5A
• Contact Resistance: 0.2 Ohms
• Sense Range Nominal: 0.5″ (1.3cm) [Proximity of ferrous materials usually reduces sense range — typically by 50%. The shape and type of material cause a wide diversity of effects]
• Lead Length: 1′

Notes:

• Testing is required to determine actual sense range for specific applications.
• Gap distances are nominal make distance ± 20%.
• Gap Specifications are for switch to make.
• Break distance is approximately 1.1 to 1.5 times make.
