Description

A Powertap Tee is connected to a network backbone just like any Tee but rather than connecting a device their purpose is to provide “bus” power. Maretron Powertap Tee uniquely provides two power inputs permitting doubled power provision for devices. Yellow cable indicates power and can’t be confused with gray network cable.

Maretron CFSPWR05CF Attributes

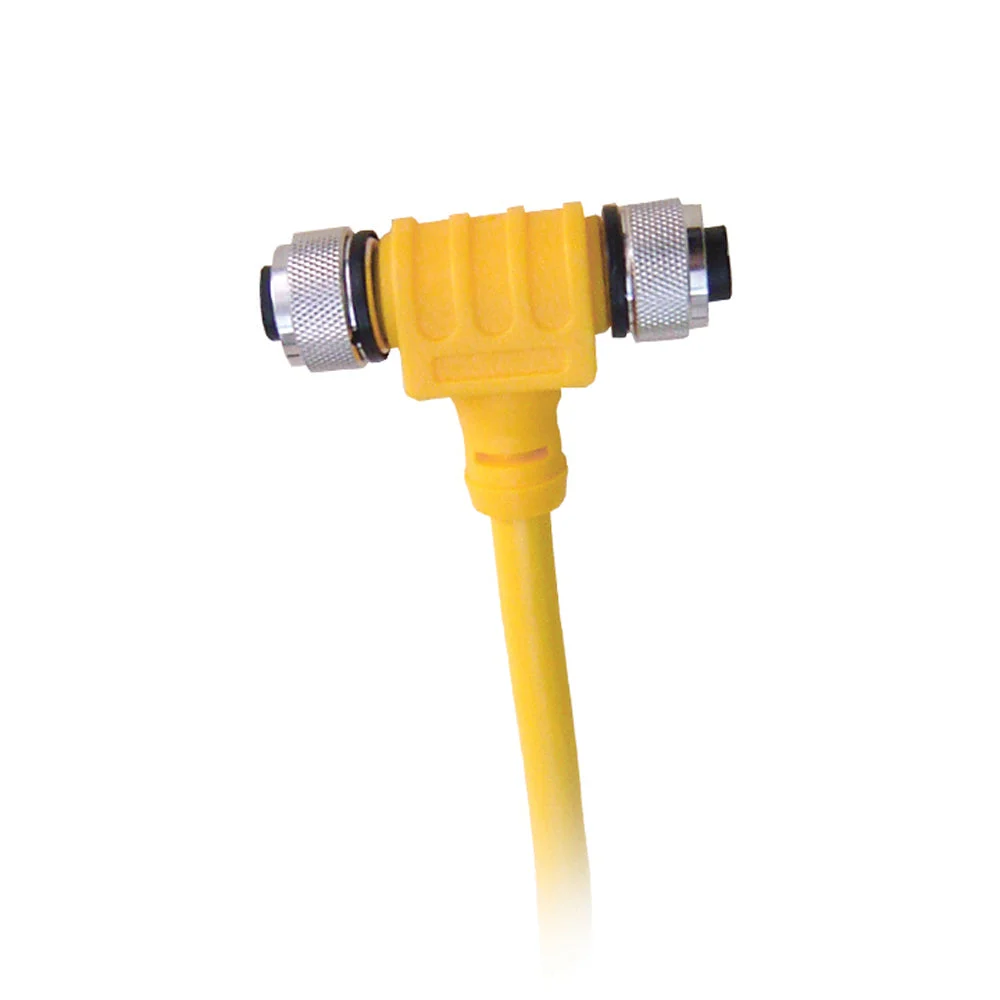

Micro/Mid Powertap Tee – FM (left)/5 Meter 4 Wire Power drop (bottom)/FM (right)
Maretron miniature CFt type three-way Powertap T connector, gold contacts with the best reliability, keyed connector for error-free connection 4.0 amps, 250 V mini medium power…

• Molded Body Mat/Color: Thermoplastic PUR/Yellow
• Contact Carrier Mat/Color: Thermoplastic PUR/Black
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Cable Jacket Mat/Color: PVC/ Yellow
• Conductor Insulation Mat: PVC
• Number of Conductors: 5×18 (1.02mm) AWG

ELECTRICAL:

• Voltage Rating: 250 V
• Max Amperage: 4.0 Amps

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4,6P
• Operating Temperature: -40°C to 105°C (-40°F to 221°F)

APPROVALS:

• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

SKU: NVN-31807
MPN: CF-SPWR05-CF
UPC: 873804002477
