Description

Maretron Fluid Pressure Sensor Transducers work with the Maretron FMP100 which will adapt up to six pressure Transducers to the NMEA 2000 network

Maretron PT03PSI01 Attributes

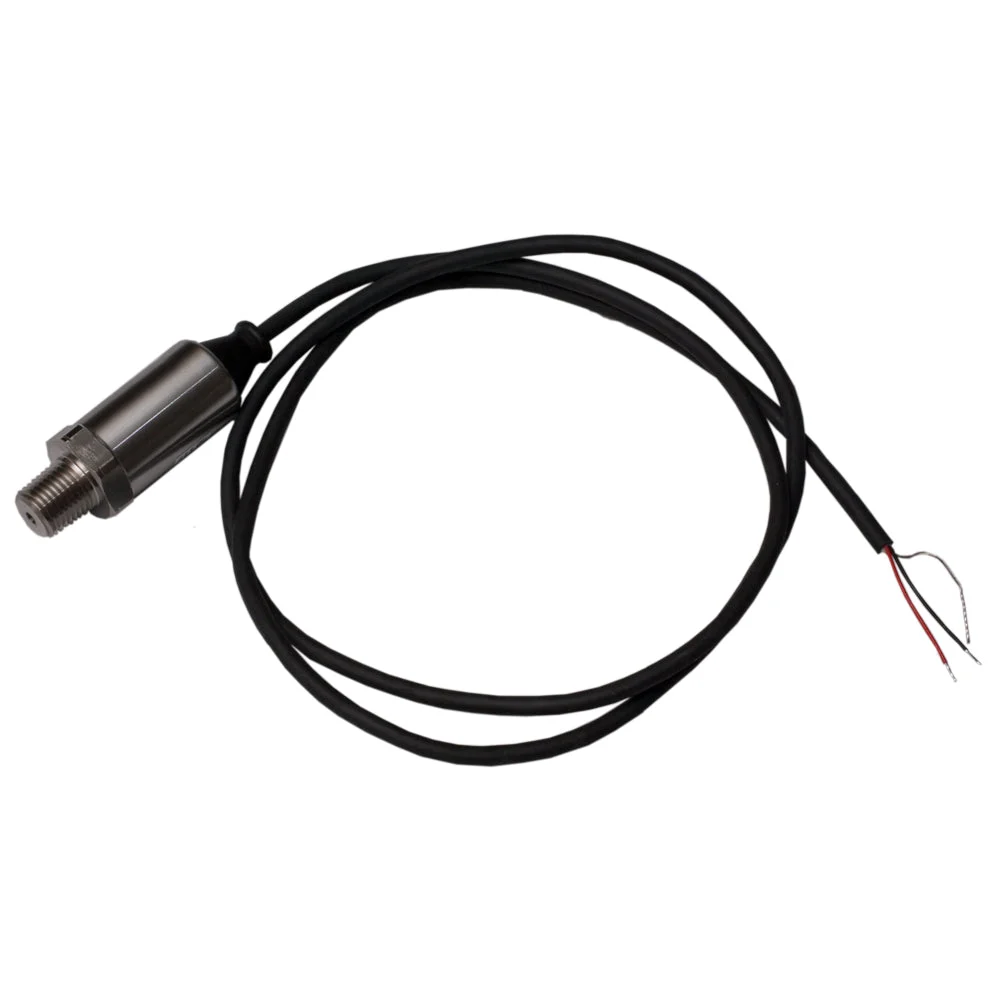

Pressure Transducer 0 to 3 PSI – for the FPM100 Fluid Pressure Monitor

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Pressure sensor 0 to 3 PSI-used for FPM100 fluid pressure monitor Warning: This product can expose you to chemical substances known in the country, including nickel (METALLIC)…

Compatible Fluids / Gases:

• Refrigerant
• Motor Oil
• Diesel
• Hydraulic Fluid
• Brake Fluid
• Water
• Waste Water
• Hydrogen
• Nitrogen
• Air

Operating Temperature:

• -5°C to 60°C

Media Temperature:

• -25°C to 125°C

Over Pressure Max:

• 29 PSI (2 bar)

Construction:

• 1.4305 (303 Stainless Steel), Thick Film on Ceramic Al2O3 (96 %) Sensor, FKM 70 Sh O-Ring

Cable:

• IP67, PVC (cable gland PA6-3)

Cable Length:

• 4.9 feet (1.5m)

Vibration:

• 4g (10 – 2000 Hz)

Shock:

• 50 g/8 ms

EMC Compatibility:

• EN 61000-6-3
• EN 61000-6-2

Humidity Max:

• 95% relative

Weight:

• 110g

SKU: NVN-40840
MPN: PT-0-3PSI-01
UPC: 873804002934
